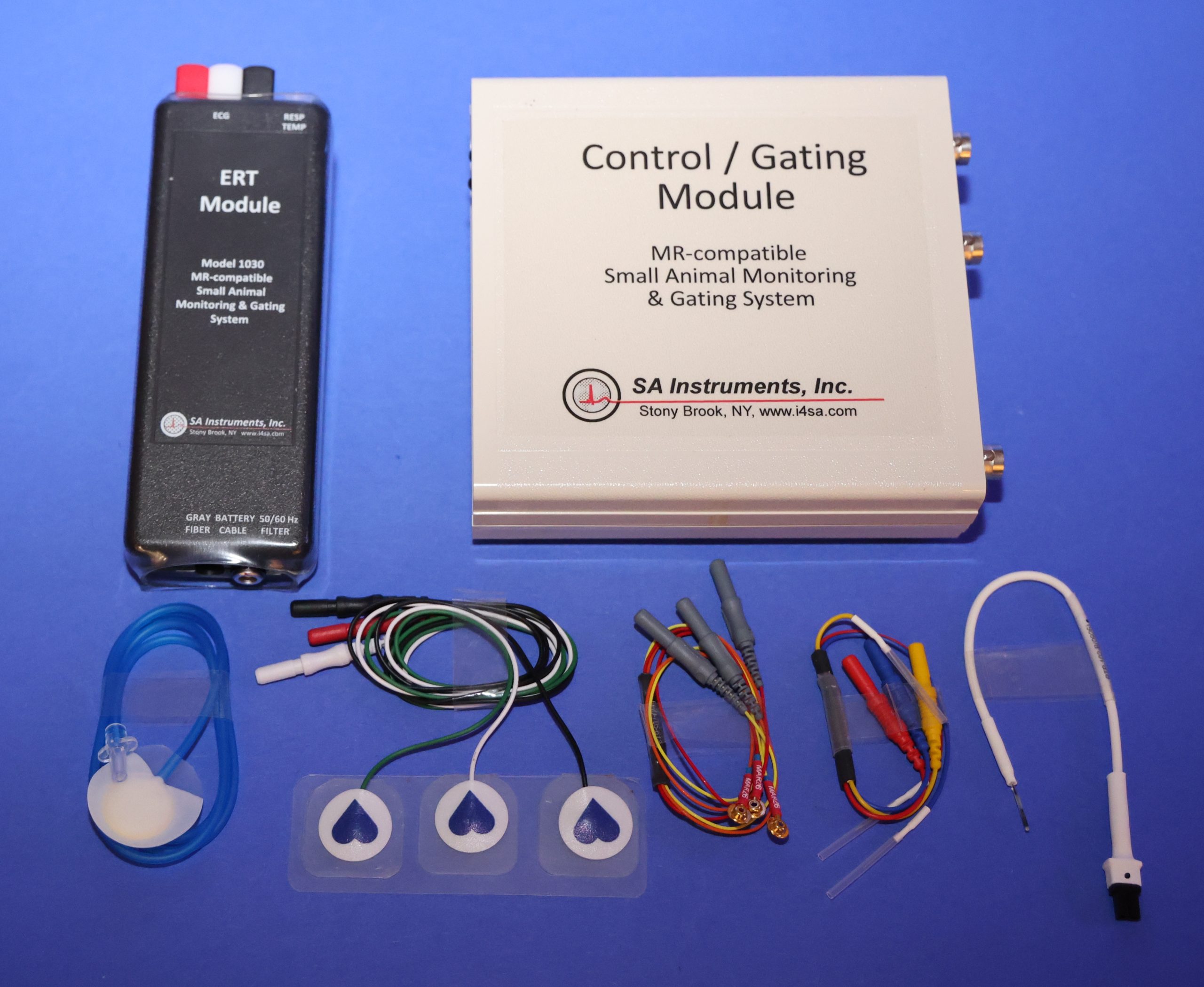

The new MR-Compatible, Model 1030 monitoring and gating system is a 3rd generation system designed specifically to meet the physiological monitoring and gating needs for anesthetized mice, rats and larger animals in the MR environment. The system consists of an ERT Module located near the animal in the magnet bore and an ERT Control/Gating Module connected to a PC located near the operator console. The PC displays multiple waveforms, measured values, trends and gating pulses.
The Model 1030 has increased performance, is simpler to use, monitors ECG, respiration and temperature with fewer components and at a reduced cost compared to the older Model 1025 system. In addition, all the SA Instruments MR-compatible optional measurement modules can be accommodated by the Model 1030. .
| MONITORING GATING | |
|
|
| Temperature Control Waveform and Trend Data Acquistion | |
| The ERT Module measures ECG using three leads with needle or surface electrodes, respiration from a small pneumatic pillow sensor and/or from the movement of one ECG lead in the strong magnetic field and temperature with a small rectal thermistor probe. Power is supplied by an external, rechargeable battery. The ERT Control/Gating Module receives data from the ERT Module and any of several optional acquisition modules. The ERT Control/Gating Module sends data to the PC for display and receives user instructions from the PC to control measurement and gating functions. Gates from ECG, respiration and any of the available options are generated by the ERT Control/Gating Module’s microprocessor and sent to the MR system. The delay from the R-wave peak to the MR system gate is user selectable as is the expiration gate delay and width. The module also controls a heating system which can regulate the temperature of the animal. The following options are available for use with the Model 1030: invasive blood pressure (IBP) measuring systolic, diastolic and mean arterial pressure, pulse oximetry using fiber optic sensors to measure oxygen saturation (SpO2), heart rate and pulse distension, capnography measuring respiration, end-tidal and minimally inspired CO2, a ventilator regulating respiration, ultra-miniature fiber optic pressure (FOP) sensors to make minimally invasive pressure measurements and fiber optic temperature (FOT). |
