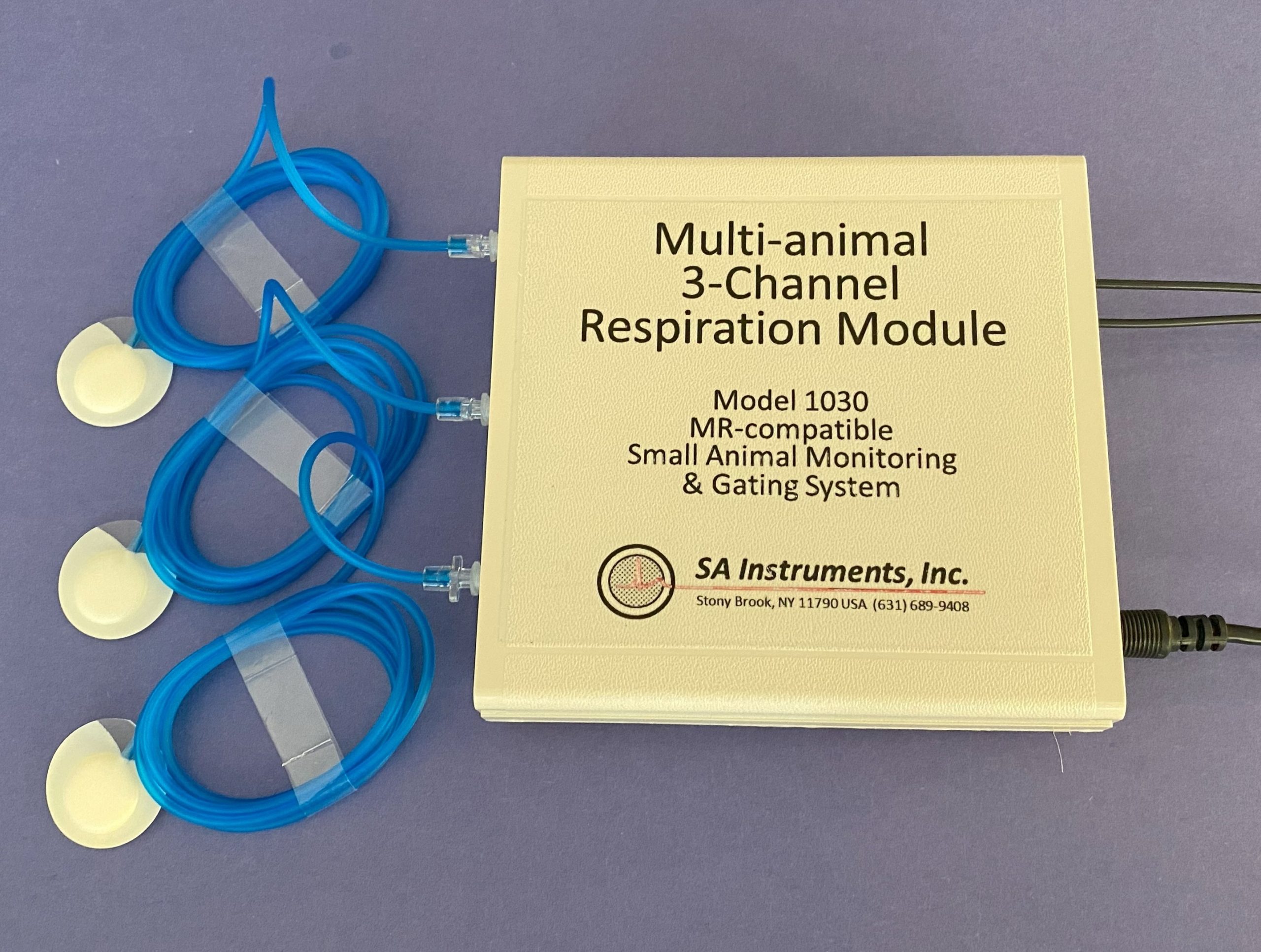

Multi-animal 3-channel Respiration Module for use with Existing Monitoring Systems

Request Quote


Use with an existing SAIII single channel monitoring and gating system like the Model 1030 or Model 1025T to create an economical 4 channel, multi-animal monitoring and gating system.  Provides respiration monitoring for up to 4 animals and temperature monitoring and control of the air around the animals.  Provides gate pulses for retrospective respiration gated images.  Compatible with MR, PET, SPECT and CT.  Option exists for 3 additional channels of temperature monitoring using  fiber optic or thermistor temperature sensors.

download the 3-channel Respiration Module brochure:
